Master Controller FCT640 Modular

For industrial motion control, CMZ Sistemi Elettronici provides FCT640 programmable plc controller: a new generation, modular, compact and high performing system based on CODESYS 3.5 with integrated I/Os.

Its technological soul is fully conceived and developed by CMZ.

FCT640 integrates motion control solutions into a single and compact technological device. The controller is equipped with all the field buses used in industry (EtherCAT, CANopen, ModbusTCP) and integrated modular I/O units, both digital and analog.

The choice of the OPC UA communication protocol is a coming soon implementation, to allow the system to be networked to the outside efficiently and safely by ensuring full connectivity with other devices as a relevant feature for Industry 4.0. interoperability.

The power of the processor, the presence of Ethernet and CAN ports and serial ports, alongside with a total memory capacity of over 1 GB plus an SD-Card, complete FCT640 technological equipment.

Dimensions mm: H 110 x W 57 x D 73. Weight gr: 300

See FCT640 I/O integrated modules

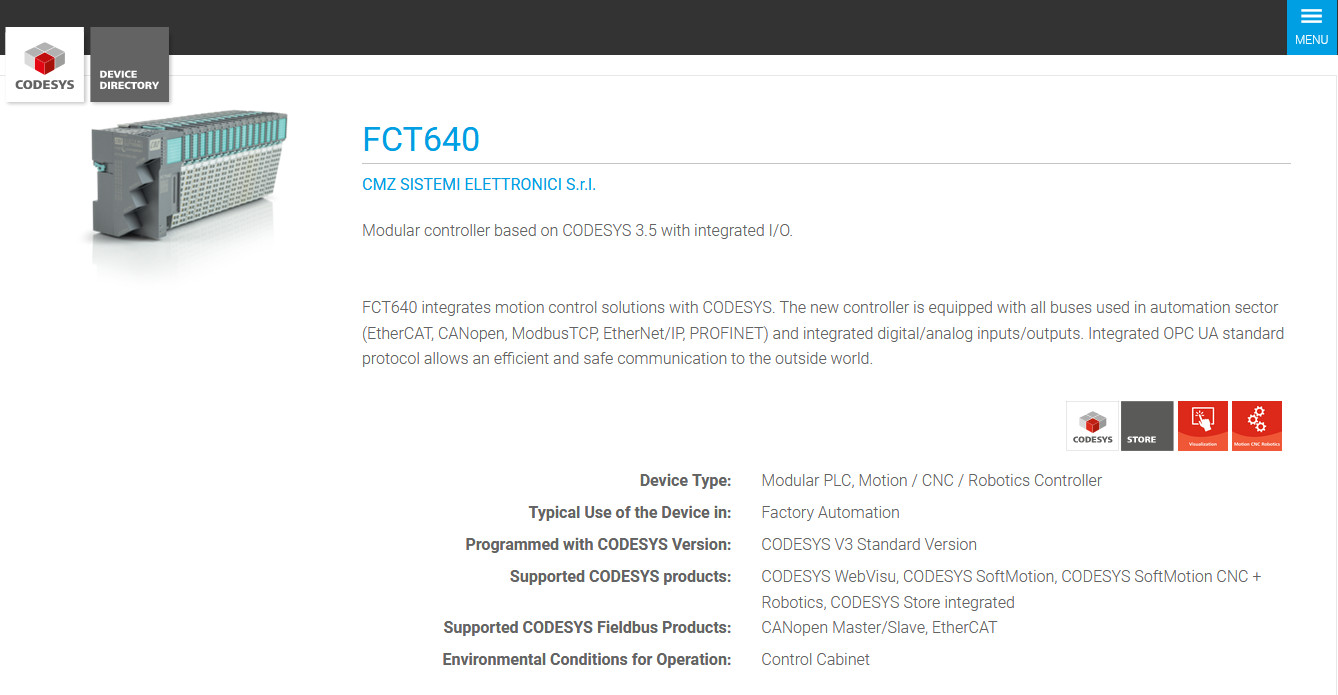

See Codesys box
Drawing 3D

TECHNICAL SPECIFICATIONS

Expansion peripheral RP64 I/O

PROCESSOR

CPU RISC dual core 64 bit
1.0 GHz three level cache

POWER SUPPLY

24V DC

MEMORY
CAPABILITY

1GB Nand flash for storage

512 MB DRAM high bandwidth 64 bit 1666 MT/s

32 KB Ferromagnetic RAM (non-volatile PLC data)

SD-Card

COMMUNICATION
PORTS

1xRJ45 Ethernet 10/100 MBit TCP/IP (Debug)

2xRJ45 Ethernet 10/100 MBit (Fieldbus)

1xRJ45 CAN-Bus (CANopen Master)

INTEGRATED I/Os

64 modules, each with a max of 16-bit IO (1024 digital) or 8 channel analog (512 analog)

Big variety of modules available

FIELDBUS

EtherCAT Master

CANopen Master

NETWORK
CONNECTIVITY

OPC-UA (soon available)

Modbus TCP Master/Slave

Communications based on UDP-TCP

WEB Server

PLCHandler

FUTURE
OPTION

Integrated LTE modem

GENERAL FEATURES

9 LEDs

RTC with CR2032 Battery

Reset-Button / Restore-Button

0° / 50°C ambient temp.

Fanless

SOFTWARE
FEATURES

Real Time OS: PRECISE MQX

IEC61131 Environment CODESYS

CMZ motion libraries

CMZ applicatives

  • DOWNLOAD CATALOGUE

    FCT640

Does FCT640 fit your project? Try the drawing 3D

FCT640_3D
