LBD/HP400

Servo drive brushless LBD stand alone

CMZ produces and offers a variety of servo drives for motion control applications.

LBD are stand alone brushless drives. They are extremely compact, reliable, high performing.

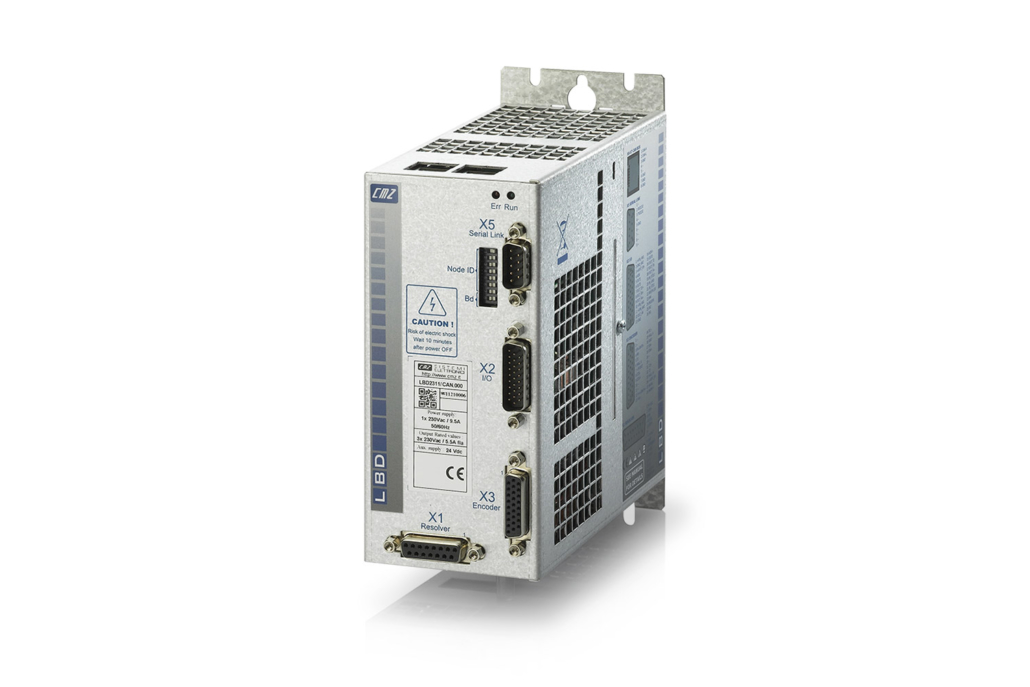

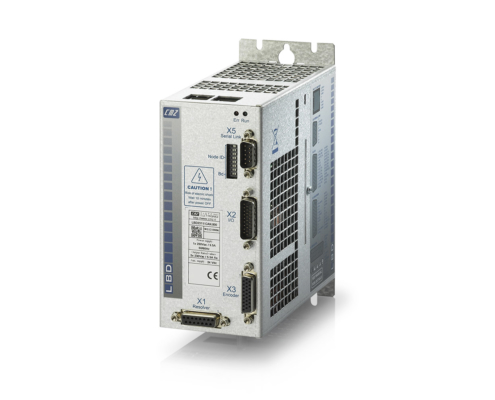

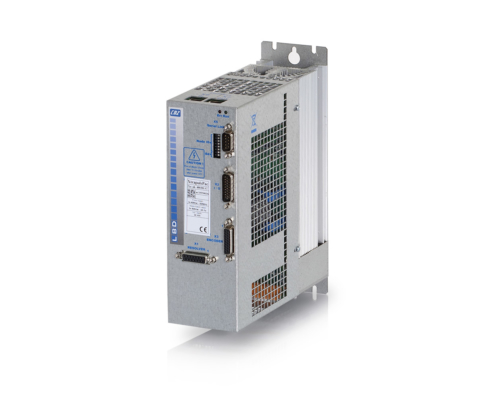

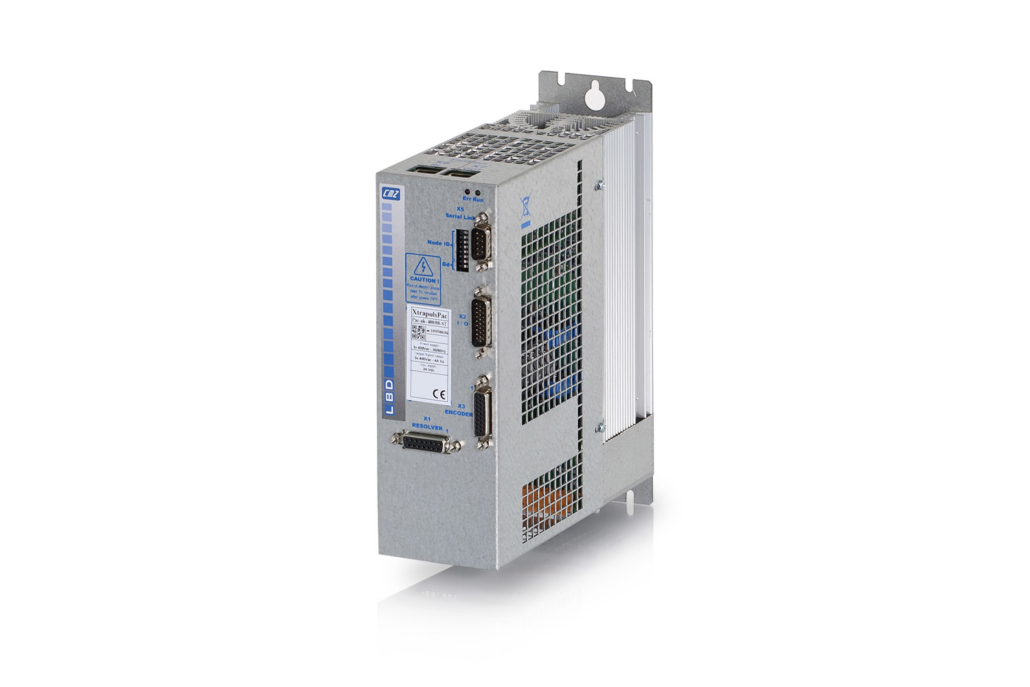

The range includes LBD/HP400 400 Vac three-phase and LBD/HP230 230 Vac single-phase.

In combination with brushless motors, these are a very suitable solution for applications on automatic machines requiring a strong kinematic performance.

Also available interfacing analog inputs and stepper motors simulation.

LBDs are suitable to be used both with CMZ FCT controllers and other different-branded controllers using CODESYS 3.5.

Dimensions mm (LBD/HP400 8A – 20A – 45A): H 235 x W 75,4 x D 191. Weight Kg: 2,2

Dimensions mm (LBD/HP400 100A): H 235 x W 80 x D 215,30. Weight Kg: 3,3

Dimensions mm (LBD/HP400 200A): H 295 x W 166,7 x D 218,4. Weight Kg: 8,5

Dimensions mm (LBD/HP230 11A – 17A): H 177,8 x W 75,4 x D 149,1. Weight Kg: 1,5

3D-drawing

TECHNICAL SPECIFICATIONS

POWER SUPPLY

230Vac single-phase.

400 Vac three-phase

CONTROL SUPPLY

24Vdc

RATED CURRENT

230Vac: 5,5A – 8,5 A

400Vac: 4 – 10 – 22,5 – 35 – 75 A

PEAK CURRENT

230Vac: 11A – 17A

400Vac: 8 – 20 – 45 – 100 – 200 A

INTERFACE

CANopen DS402 (2 RJ45 connectors), EtherCAT, ± 10V, Pulse/direction

FEEDBACK

Resolver, TTL incremental encoder, TTL incremental encoder+HES, SinCos, SinCos+HES, HIPERFACE absolute encoder single and multiturn, digital HIPERFACE DSL absolute encoder, digital EnDat 2.2 absolute encoder, linear absolute encoder

ENCODER EMULATION

Incremental TTL (differential output)

2 ANALOG INPUTS

12bits +/-10V

1 ANALOG OUTPUT

8 bits +/- 2,5V

5 DIGITAL INPUTS

24Vdc optoisolated: general purpose or configurable as Capture, Index, Limit switch +/-, Enable, STEP/DIR

3 DIGITAL OUTPUTS

Parametrable 24Vdc max 300mA with dedicated terminal connection for motor brake control (external power device required)

BRAKING RESISTOR

35W included. External connections available

STO FUNCTION

2 channels, SIL3

MOTOR THERMAL SENSOR

PTC/NTC

EMC FILTER

Choke integrated

CERTIFICATIONS

CE

UL (except for LBD400 200A model; for models listed in UL file E211056)

Does LBD fit your project? Try the drawing 3D

LBD/HP400 (8A - 20A - 45A) LBD/HP400 (100A) LBD/HP400 (200A) LBD/HP230 (11A - 17A)
